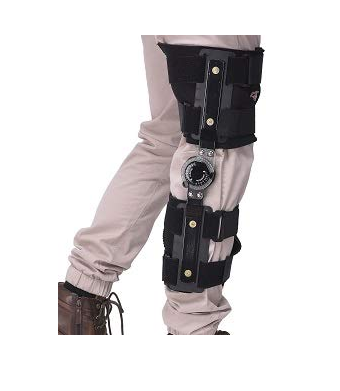

Tynor R.O.M Knee Brace 22"/56CM Knee, Calf & Thigh Support (Universal Size)

DECRIPCTION

Tynor ROM knee brace 22 inch (universal) has motion range from 0 to 120 degree flexion and 0 to 60 hyper extension with locking intervals at 15 degrees. Pleasurable locking, using easy pull mechanism. Straps with reverse buckle mechanism provides controlled tightening. It is easy to wear.

• It provides easy ROM angle adjustments and controlled motion with immobilization at any angle.
• Range of motion from 0 to 1. 2. 0 degree flexion and 0 to 60 hyperextension with locking intervals at 1 and 5 degrees.
• Good aesthetics, easy pull mechanism, Effective product grip and improved cushioning.
• Easy to use, comfortable and durable.
• One size fits all.

ANGLE OF THE KNEE OR MOTION ADJUSTMENT

• First set the Flexion angle
• Pull the knob lightly, rotate and release at the desired angle marked on the graduated disc.
• Bend the knee and ensure the desired flexion angle of the knee is attained.
• Then set the Extension angle.
• Pull the knob on the extension side lightly, rotate and release at the desired angle marked on the graduated disc.
• Repeat the above process for the other hinge.

MOVEMENT AND IMMOBILIZATION

• When immobilization at a particular angle required
  Move both, flexion as well as extension knobs to the same desired angle on the graduated disc
• When flexion movement is required between any two angles
  Move the flexion knob to the angle corresponding to higher degree of angle and the extension knob to the hole corresponding to lower degree of angle.
• When neither flexion immobilization or flexion movement is required then both the pins be affixed at 0 / lock position
• When free flexion movement of the leg. Place flexion knob at 120 degree and extension knob at 0 degree.

HOW TO USE

• Ensure, that both the hinges are upright as per the arrow mark and the bending is in line with knee bending.
• Affix the two hinges on the two sides of the knee joint so that the centre of the MPFGD coincides with axis of the knee.
• Wrap the Velcro bands around the leg one by one carefully passing them through the slots in the PP buckle on the hinge
• Fasten the Velcro strips with the reverse buckling to a comfortable, secure grip.
